Dual Sport 1 Gen 4

549.00644.00

Dual Sport 1 is a hybrid bike in the true sense of the term: it excels on a variety of surfaces, and can take you from smooth Tarmac to light off-road trails in a single ride. A reliable frame, suspension fork and all-terrain tyres give Dual Sport 1 an incredible amount of capability on recreational fitness rides.

A sleek, modern bicycle is shown against a black background. The bike features a silver frame with bold red "Dual Sport 1 Gen 4" branding, a front suspension fork, black wheels, and disc brakes. It has flat handlebars and a minimalist design, suitable for various terrains.
Dual Sport 1 Gen 4 549.00644.00

It’s right for you if…

You want a single hybrid bike that’s efficient on the road and comfortable on rougher terrain and even light trails. You value confidence, stability, versatility and performance on recreational rides and commutes that cover a variety of terrains.

The tech you get

A sturdy aluminium frame, a suspension fork with enough travel to take the edge off in rough terrain, a reliable drivetrain with 16 speeds and a wide range of gearing so you’re never pedalling too hard or too soft, all-terrain tyres that are grippy yet fast-rolling and disc brakes for all-weather stopping power.

The final word

City bike, trail bike, your bike. Dual Sport 1 is an all-terrain hybrid bike built for adventure on or off the road, and ready to take you from week to weekend and back in comfortable, confident style.

Why you’ll love it

Why choose between the road and trail? Dual Sport is a versatile hybrid that excels on a variety of terrains
It’s easy to accessorise your frame with racks, a kickstand, mudguards, lights and more!
The 2x drivetrain gives you all the gears you need and none you don’t
DuoTrap S compatibility makes it easy to wirelessly track your rides, so you can set goals and watch yourself reach them
Internal cable routing extends the life of your cables and adds to the bike’s sleek look

Specs

*Please note – spec applies to all sizes unless listed separately

Frameset
  • *Frame
  1. Size: S Alpha Gold Aluminium, curved top tube, DuoTrap S-compatible, internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135×5 mm QR
  2. Size: M, L, XL Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135×5 mm QR

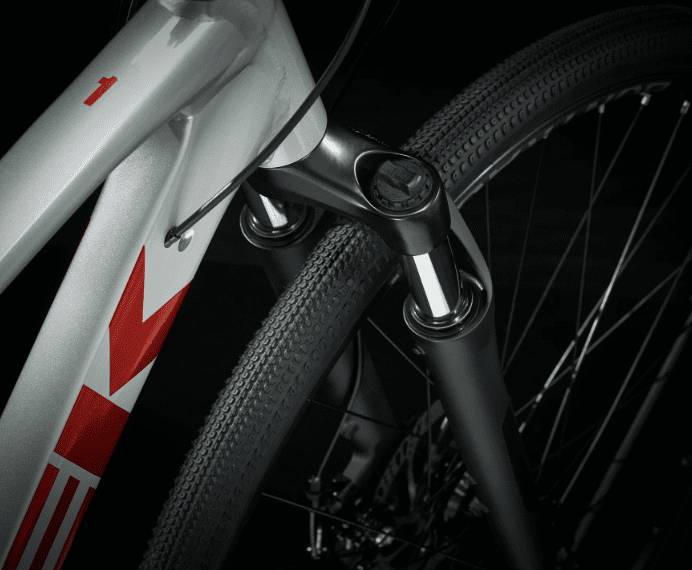

    Fork SR Suntour NEX, coil spring, preload, 100×5 mm QR, 63 mm travel
Wheels
  • Hub front Formula DC-20, alloy, 6-bolt, 5×100 mm QR
  • Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR
  • Skewer rear 152×5 mm QR
  • Rim Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve
  • Tyre Bontrager GR1 Comp, wire bead, 60 tpi, 700×40 c
  • Max tyre size Frame: 700x45mm with mudguards, 29×2.10″ without mudguards, Fork: See manufacturer
Drivetrain
  • Shifter Shimano EF500, 8-speed
  • Front derailleur Shimano Tourney TY710, 34.9 mm clamp, top swing, dual pull
  • Rear derailleur Shimano Altus M310
  • Crank Forged alloy, 46/30, chainguard, 170 mm length
  • Bottom bracket Sealed cartridge, 68 mm
  • Cassette Shimano HG31, CS-HG31, 11-32, 8 speed
  • Chain KMC Z8.3
  • Pedal Wellgo nylon platform
Components
  • Saddle Bontrager Sport
  • Seatpost Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
  • *Handlebar
  1. Size: S, M Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width
  2. Size: L, XL Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620mm width
  • Grips Bontrager Satellite
  • *Stem
  1. Size: S, M Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length
  2. Size: L, XL  Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length
  • Head set 1-1/8″ threadless, sealed cartridge bearings
  • Brake Tektro MD-M280 mechanical disc, 160 mm rotor
Weight

M – 13.54 kg / 29.86 lb
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
